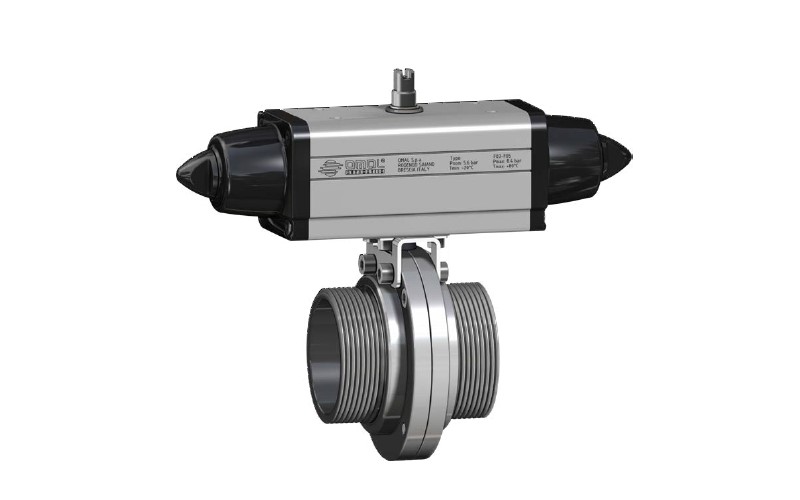

Art.374 衛生蝶閥（氣動夾碟閥）

Art.374 氣動夾碟式蝶閥採用 316L 衛生級不鏽鋼與快速拆裝式設計，搭配 VITON 或 SILICONE 材質座墊，可迅速清洗與更換。專為乳品、飲料、保養品、啤酒、抽真空填料等應用環境而設計，確保潔淨無殘留，適合自動化 CIP 系統。

產品特色

• 316L 衛生級不鏽鋼，拋光內壁無死角
• 快速夾碟設計，維護清洗方便
• 適用 VITON、SILICONE 密封墊材
• 食品級氣動閥，適用真空填料與飲料設備
• 陽極處理鋁合金氣缸，反應迅速穩定

技術規格

尺寸 (Size)	1" ～ 6"
閥體材質 (Body)	316L 衛生級不鏽鋼
氣缸材質 (Actuator)	陽極處理鋁合金
密封材質 (Seat)	VITON / SILICONE
工作溫度 (Temperature)	-20℃ ～ +150℃
應用範圍 (Application)	飲料、乳品、啤酒、真空填料、保養品製程

Art.374 Sanitary Pneumatic Butterfly Valve

The Art.374 pneumatic sanitary butterfly valve features a 316L stainless steel polished body and a quick-clamp disc design. It offers seat options in VITON or SILICONE for easy cleaning and replacement. Perfect for dairy, beverages, cosmetics, beer, and vacuum filling systems, supporting CIP and automated hygienic lines.

Features

• 316L stainless steel with hygienic polish
• Quick-clamp design for easy disassembly
• Seat materials: VITON / SILICONE
• Suitable for food-grade and vacuum filling lines
• Equipped with anodized aluminum pneumatic actuator

Technical Specifications

Size	1" ～ 6"
Body Material	316L Stainless Steel
Actuator	Anodized Aluminum
Seat Material	VITON / SILICONE
Working Temperature	-20℃ to +150℃
Applications	Dairy, Beverage, Vacuum Filling, Cosmetics
