ART.374 衛生蝶閥

ART.374 衛生蝶閥專為食品、飲料、真空與氣體應用而設計，採用 316L 不銹鋼與陽極處理鋁合金氣缸製造，具備卓越耐蝕與衛生性能。坐墊材質提供 VITON 與 SILICONE 選擇，確保密封效果並耐受高溫至 150℃。

產品特色

• 316L 衛生級不銹鋼閥體
• 適用食品、氣體、真空流體
• 陽極處理鋁合金氣缸，耐久防蝕
• 坐墊材質：VITON 或 SILICONE
• 耐溫範圍廣，最高可達 150℃

技術規格

尺寸	1”～ 6”
閥體材質	316L 不銹鋼
氣缸材質	陽極處理鋁合金
坐墊材質	VITON / SILICONE
工作溫度	-20℃ 至 +150℃
流體範圍	水、油、氣體、食品、真空

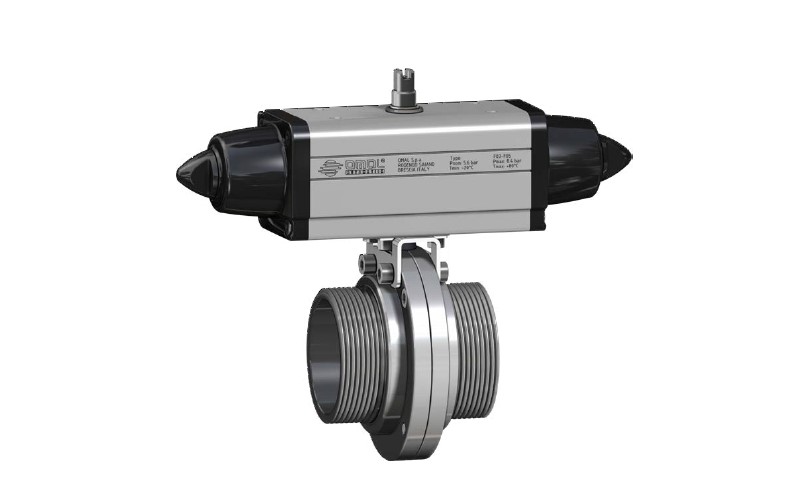

ART.374 Sanitary Butterfly Valve

The ART.374 sanitary butterfly valve is designed for hygienic applications including food, vacuum, and gas systems. Constructed with 316L stainless steel and an anodized aluminum actuator, it ensures excellent corrosion resistance and clean operation. Seat materials available in VITON or SILICONE provide high sealing performance and temperature endurance up to 150℃.

Features

• Sanitary 316L stainless steel body
• For food, oil, gas, and vacuum systems
• Anodized aluminum actuator for durability
• Seat material: VITON or SILICONE
• High temperature tolerance up to 150℃

Technical Specifications

Size	1” – 6”
Body Material	316L Stainless Steel
Actuator Material	Anodized Aluminum
Seat Material	VITON / SILICONE
Temperature Range	-20℃ to +150℃
Media	Water, oil, gas, food, vacuum
