產品介紹>手動閥>法蘭球塞閥

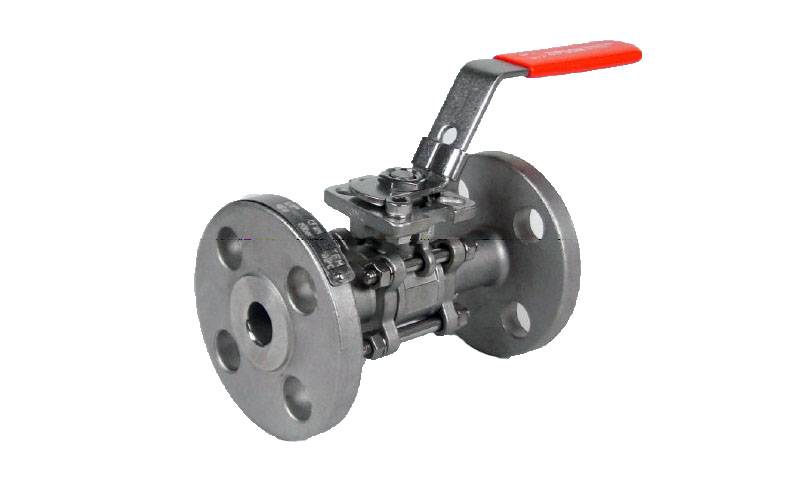

法蘭球塞閥

本系列法蘭球閥適用於各類流體控制需求,尺寸範圍涵蓋 1/2” ~ 12”,支援 JIS、ANSI 及 PN 國際標準規格,並提供多種材質選擇,包括不銹鋼 304、316 及鑄鐵。本體與球體結構堅固、密封性良好,適用於水處理、化工管線及各式產業設備系統。根據實際工況,可選配適合的閥體與座墊材質。

產品特色

  • 支援 JIS、ANSI、PN 多種法蘭規格
  • 可選不銹鋼 304、316 或鑄鐵材質
  • 廣泛應用於液體、氣體與真空環境
  • 提供特殊合金訂製服務(少量亦可)

技術規格

尺寸範圍 1/2” ~ 12”
法蘭規格 JIS 10K / 20K、ANSI 150 / 300、PN16 / PN40
材質 不銹鋼 304 / 316、鑄鐵、特殊合金
適用流體 依實際需求搭配對應閥體與球座材質

特殊合金訂製服務

一般供應商面對特殊材質與少量需求多不願生產,我司可依據小量客戶需求彈性製作,提供 Hastelloy C、Monel、Alloy 20、2205 Duplex、Super Duplex 等合金球閥,快速協助您解決工況瓶頸,價格亦維持合理範圍,適用於各類二通、三通、多通球閥及法蘭與高壓型號。

Flanged Ball Valve (Alloy Optional)

This flanged ball valve series covers a wide range of industrial fluid control needs, with sizes from 1/2” to 12” and compatibility with JIS, ANSI, and PN flange standards. Available in stainless steel 304, 316, or cast iron, each valve is built for strong sealing and long-term performance. Valve body and seat materials can be customized based on actual media requirements.

Features

  • Supports JIS, ANSI, and PN flange standards
  • Available in SS304, SS316, or cast iron
  • Compatible with various fluid and vacuum systems
  • Custom alloy valve options available (small quantities accepted)

Technical Specifications

Size Range 1/2” to 12”
Flange Standards JIS 10K / 20K, ANSI 150 / 300, PN16 / PN40
Material SS304 / SS316, Cast Iron, Optional Alloys
Fluid Type Material combinations based on media compatibility

Custom Alloy Valve Options

Unlike typical suppliers who avoid low-volume alloy orders, we offer quick and flexible production for customers needing specialty materials. Supported alloys include Hastelloy C, Monel, Alloy 20, Duplex A890 Gr.4A (2205), and Super Duplex (Gr.5A & 6A). Suitable for 2-way, 3-way, multi-way, flanged, and high-pressure models.

國內外大廠廠牌之選擇,歡迎洽詢。
