Art.DG526 碳鋼高壓氣動閥

Art.DG526碳鋼高壓氣動閥，專為高壓流體系統設計，閥體以耐壓強度極佳的碳鋼製成，搭配高性能陽極處理鋁合金氣缸，適合油品、氣體、石油、石化及重工業領域應用。具備卓越的氣密性、耐衝擊性與長壽命特性，確保高壓環境下穩定可靠運作。

產品特色

• 高耐壓碳鋼閥體，耐衝擊性強
• 氣動驅動，開關快速、反應穩定
• 陽極處理鋁合金氣缸，輕量且耐蝕
• 適用於油品、氣體、石化流體控制
• 密封性優異，延長使用壽命

技術規格

尺寸 (Size)	1/2" ～ 4"（可訂製）
閥體材質 (Body Material)	碳鋼（Carbon Steel）
氣缸材質 (Cylinder Material)	陽極處理鋁合金
工作壓力 (Working Pressure)	高壓等級（依需求訂製，如PN63、PN100等）
工作溫度 (Working Temperature)	-20℃ ～ +120℃
適用流體 (Applicable Fluids)	水、油、氣體、石油、石化產品、真空

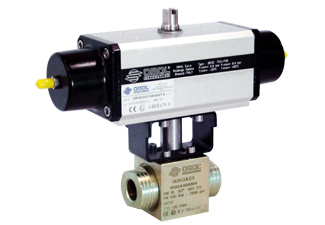

Art.DG526 Carbon Steel High Pressure Pneumatic Valve

The Art.DG526 carbon steel high pressure pneumatic valve is designed for high-pressure fluid systems. Constructed with durable carbon steel and paired with a high-performance anodized aluminum actuator, it is ideal for controlling oils, gases, petrochemical fluids, and vacuum systems. Exceptional sealing and impact resistance ensure stable operation in demanding environments.

Features

• High-pressure resistant carbon steel body
• Fast-acting and stable pneumatic operation
• Lightweight, corrosion-resistant anodized aluminum actuator
• Suitable for oil, gas, petrochemical, and vacuum applications
• Excellent sealing performance and extended service life

Technical Specifications

Size	1/2" ～ 4" (customizable)
Body Material	Carbon Steel
Cylinder Material	Anodized Aluminum Alloy
Working Pressure	High pressure rated (customizable, e.g., PN63, PN100)
Working Temperature	-20℃ to +120℃
Applicable Fluids	Water, Oil, Gas, Petroleum, Petrochemical Products, Vacuum
