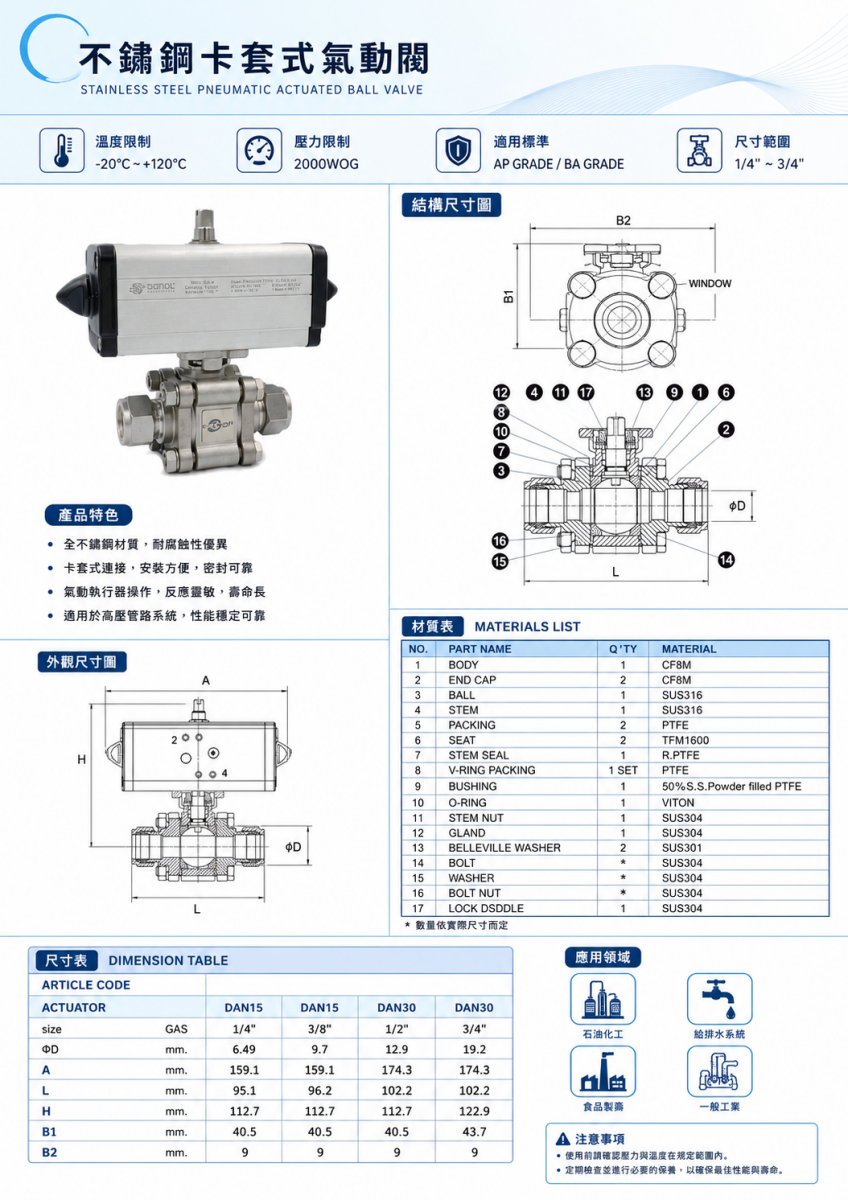

Art.DG404 卡套式氣動球塞閥

Art.DG404卡套式氣動球塞閥，專為高壓電子級（BA級）淨油處理及氣密需求設計。採用高耐腐蝕性的316不鏽鋼閥體，搭配陽極處理鋁合金氣缸與卡套式接頭（符合世維洛克標準），適合應用於水、油、氣體、石油、石化產品及真空流體系統。體積小巧，氣密性卓越，耐高壓達2000PSI。

產品特色

• 高壓電子級設計，符合BA等級潔淨要求
• 卡套式接頭，符合世維洛克標準
• 高強度SS316不鏽鋼閥體，耐蝕抗壓
• 陽極處理鋁合金氣缸，輕量耐用
• 適用於淨油處理、水、油、氣體、真空等流體

技術規格

尺寸 (Size)	1/4" ～ 3/4"
閥體材質 (Body Material)	SS316不鏽鋼
氣缸材質 (Cylinder Material)	陽極處理鋁合金
接頭類型 (Connection Type)	卡套式（符合世維洛克標準）
工作壓力 (Working Pressure)	2000 PSI
工作溫度 (Working Temperature)	-20℃ 至 +150℃
適用流體 (Applicable Fluids)	水、油、氣體、石油和石化產品、真空

Art.DG404 Compression Tube Pneumatic Ball Plug Valve

The Art.DG404 compression tube pneumatic ball plug valve is designed for high-pressure electronic grade (BA grade) oil purification and gas-tight applications. Constructed with corrosion-resistant SS316 stainless steel and featuring an anodized aluminum actuator, this compact valve uses Swagelok-compatible compression fittings. It is suitable for controlling water, oil, gas, petroleum, petrochemical products, and vacuum fluids under up to 2000 PSI.

Features

• High-pressure electronic grade (BA) design
• Compression tube fittings compatible with Swagelok standards
• Durable SS316 stainless steel valve body
• Lightweight anodized aluminum actuator
• Ideal for oil purification, water, gas, petroleum, and vacuum control

Technical Specifications

Size	1/4" ～ 3/4"
Body Material	SS316 Stainless Steel
Cylinder Material	Anodized Aluminum Alloy
Connection Type	Compression Tube (Swagelok Standard)
Working Pressure	2000 PSI
Working Temperature	-20℃ to +150℃
Applicable Fluids	Water, Oil, Gas, Petroleum, Petrochemical Products, Vacuum
