I-BOX 塑膠限位開關盒

I-BOX 塑膠限位開關盒，適用於氣動執行器之閥位訊號回饋，可偵測閥門開啟或關閉位置，並將訊號輸出至控制器、PLC或DCS系統。採緊湊型塑膠外殼設計，可直接安裝於氣動執行器上，搭配透明上蓋與大型OPEN-CLOSED開關指示，方便現場人員快速確認閥位狀態。可選配機械式微動開關或感應式近接開關，適用於氣動球閥、氣動蝶閥及各式自動化控制閥使用。

產品特色

• 緊湊型塑膠限位開關盒，適合氣動執行器直接安裝
• 透明上蓋搭配大型OPEN-CLOSED指示，閥位狀態清楚可視
• PA6 / PC外殼材質，具備良好耐用性
• IP67防護等級，防塵防水
• 可選配機械式微動開關或感應式近接開關
• M20 x 1.5電纜接口，適用電纜外徑約Ø6～12mm
• 適用於球閥、蝶閥及氣動控制閥

技術規格

適用場合

• 氣動球閥開關位置回饋
• 氣動蝶閥位置監控
• 自動化設備訊號回傳
• PLC / DCS 控制系統
• 石化、化工及一般製程設備

I-BOX Compact Plastic Limit Switch Box

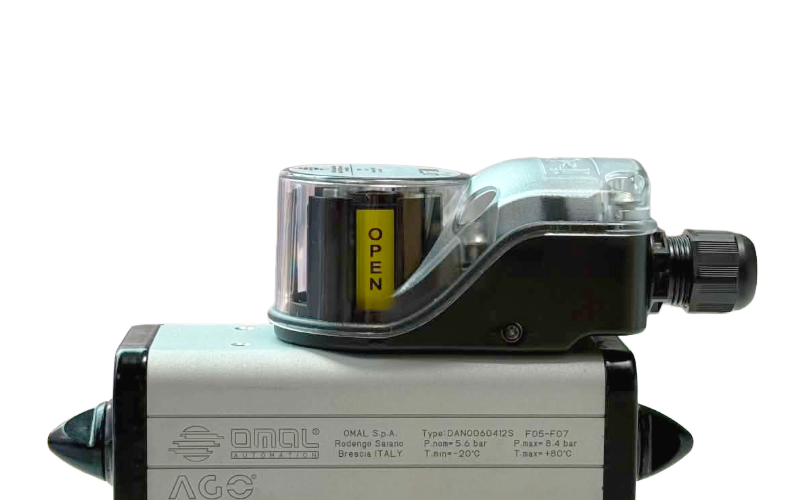

The I-BOX compact plastic limit switch box is designed for valve position feedback on pneumatic actuators. It detects the open or closed position of valves and sends signals to controllers, PLC or DCS systems. With a compact plastic housing, transparent cover and large OPEN-CLOSED visual indicator, the valve position can be easily checked on site. It is available with mechanical switches or inductive proximity switches, and is suitable for pneumatic ball valves, butterfly valves and automated valve control systems.

Features

• Compact plastic limit switch box for direct actuator mounting
• Transparent cover with large OPEN-CLOSED position indicator
• PA6 / PC housing construction
• IP67 protection for dust and water resistance
• Available with mechanical switches or inductive proximity switches
• M20 x 1.5 cable gland, suitable for Ø6–12mm cable diameter
• Suitable for ball valves, butterfly valves and pneumatic control valves

Technical Specifications
