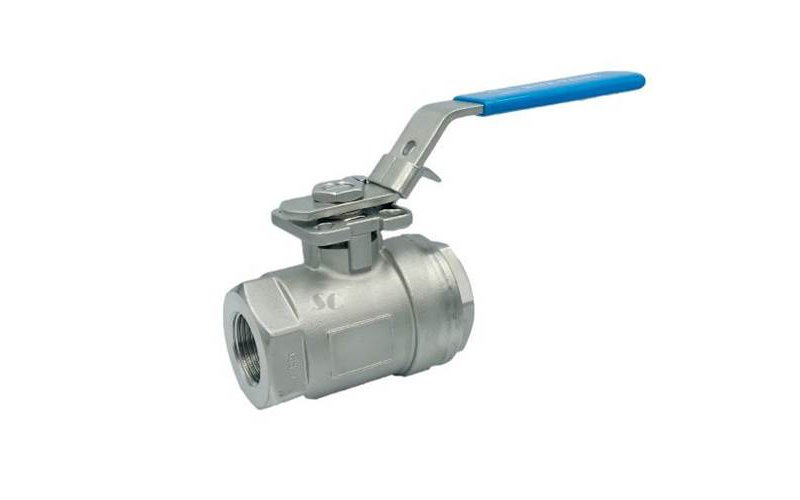

SC-25 二片式高平台球塞閥（2000WOG 防火認證）

SC-25 為高壓等級二片式球塞閥，通徑全流量，具備 ISO 5211 高平台設計可直接安裝氣動或電動驅動器，支援多種端接螺紋規格。具備防火認證、防爆中軸與靜電珠設計，提供更高操作安全性與自動化兼容性，適用於高壓氣體與流體控制。

產品特色

• 2000WOG 壓力等級，全流量設計
• ISO 5211 高平台，便於自動化配備
• 具防火認證、防爆中軸與靜電珠
• 支援掛鎖型手動把手
• 廣泛螺紋端接標準，應用彈性高

技術規格

尺寸範圍	1/4” ～ 3” (DN8 ～ DN80)
結構設計	二片式，全流量，防火認證
安裝平台	ISO 5211 高平台
工作壓力	2000psi
端接標準	ANSI B1.20.1 (NPT), DIN 259, DIN 2999, ISO 228, BSP, PT

SC-25 2-Piece ISO5211 Ball Valve (2000WOG Fire-Safe)

The SC-25 is a full port, 2-piece ball valve rated at 2000WOG. It features an ISO 5211 mounting pad for direct automation, fire-safe certified body, blowout-proof stem, and anti-static device. Suitable for high-pressure gas and fluid applications, with support for various threaded connections and optional locking handle.

Features

• Full port, 2000WOG pressure rating
• ISO 5211 mounting pad for actuator
• Fire-safe certified, blowout-proof stem, anti-static device
• Lockable handle available
• Thread standards: NPT, BSP, DIN, ISO, PT

Technical Specifications

Size Range	1/4” to 3” (DN8 to DN80)
Design	2-piece, full port, fire-safe certified
Mounting Pad	ISO 5211 platform
Working Pressure	2000psi
Thread Standards	ANSI B1.20.1 (NPT), DIN 259, DIN 2999, ISO 228, BSP, PT
