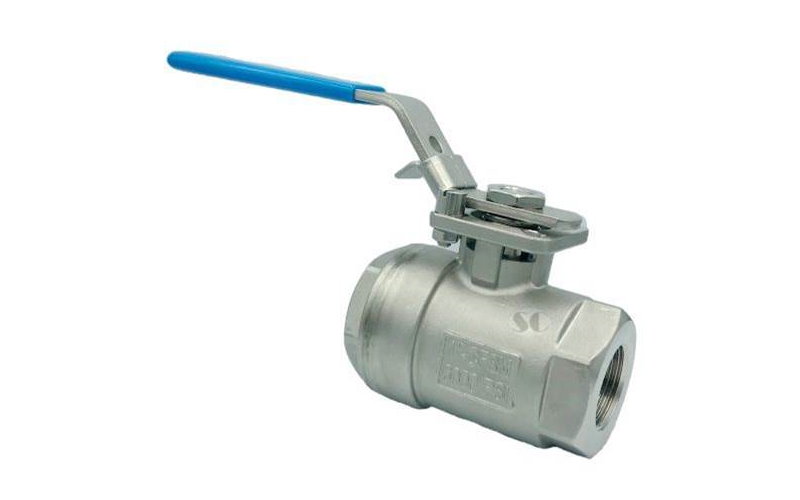

SC-2H 二片式高平台球塞閥（6000WOG 防火設計）

SC-2H 為超高壓等級的二片式球塞閥，額定壓力達 6000WOG，適用於 1/4”～2”（DN8～DN50）管徑。搭載 ISO 5211 高平台，可直接安裝自動驅動器。具備防火設計、防爆中軸與靜電珠，安全性高；球墊可選 DELRIN 或 PEEK 材質，適用於高壓高溫環境。

產品特色

• 6000psi 壓力等級，適用高壓系統
• ISO 5211 高平台設計，支援自動化
• 防火設計、防爆中軸、靜電珠保護
• 球墊材質可選 DELRIN 或 PEEK
• 可搭配掛鎖型手動把手

技術規格

尺寸範圍	1/4” ～ 2” (DN8 ～ DN50)
壓力等級	6000psi (6000WOG)
安裝平台	ISO 5211 高平台
球墊材質	DELRIN / PEEK
端接標準	ANSI B1.20.1 (NPT), DIN 259, DIN 2999, ISO 228, BSP, PT

SC-2H 2-Piece ISO5211 Ball Valve (6000WOG Fire-Safe)

The SC-2H is a high-pressure 2-piece ball valve rated for 6000WOG. Available in sizes from 1/4” to 2”, it features an ISO 5211 mounting pad for direct actuator installation. Designed with fire-safe features, blowout-proof stem, and anti-static device, it offers superior safety and automation compatibility. Seat materials available in DELRIN or PEEK.

Features

• 6000psi pressure rating for high-pressure systems
• ISO 5211 direct mount platform
• Fire-safe design with blowout-proof stem and anti-static protection
• Seat options: DELRIN / PEEK
• Lockable handle available

Technical Specifications

Size Range	1/4” to 2” (DN8 to DN50)
Pressure Rating	6000psi (6000WOG)
Mounting Pad	ISO 5211 platform
Seat Material	DELRIN / PEEK
Thread Standards	ANSI B1.20.1 (NPT), DIN 259, DIN 2999, ISO 228, BSP, PT
